TX SERIES
Multi-screen Seamless Splicing Playback; Various Control Mode; HD Quality; Support Diverse Installation
Weight
Thickness
Include U disk,HDMI Sync and Ethernet internet connection; smart Phone/PC wireless control.
0-800cd/sqm(10 levels adjustable) & 160° wide viewing angle.
Adaptive resolution, media spread on full screen automatically.

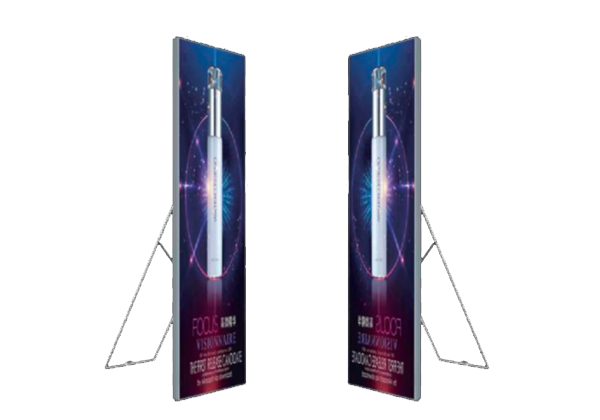

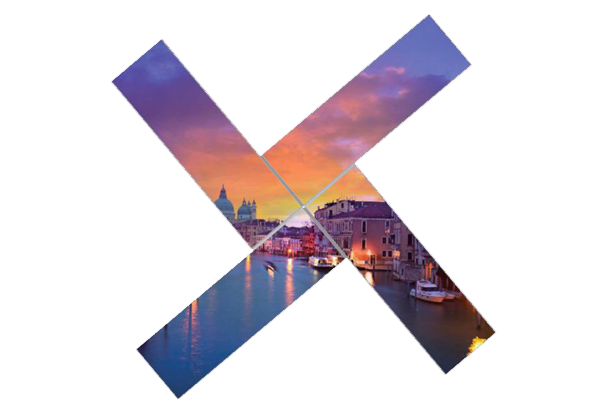

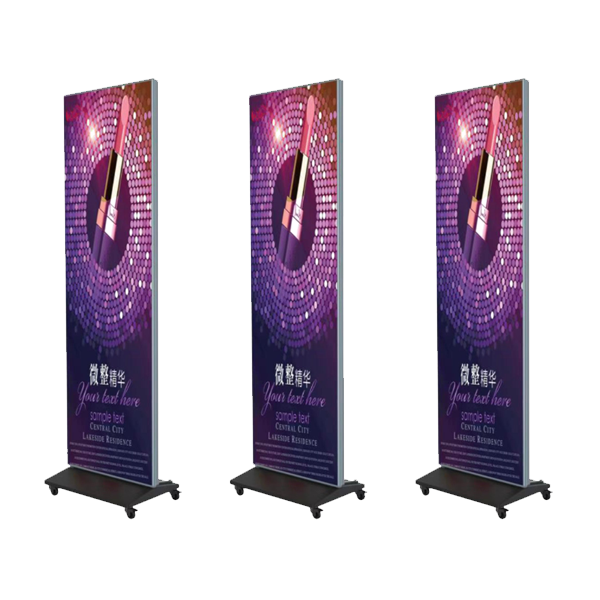

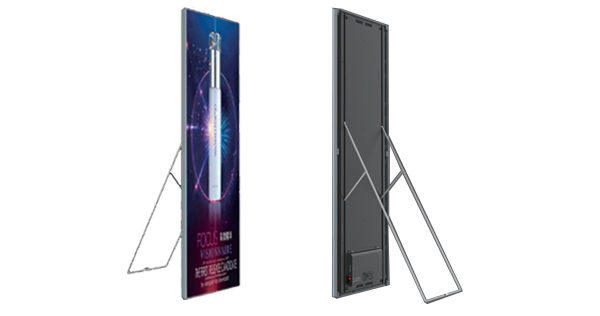

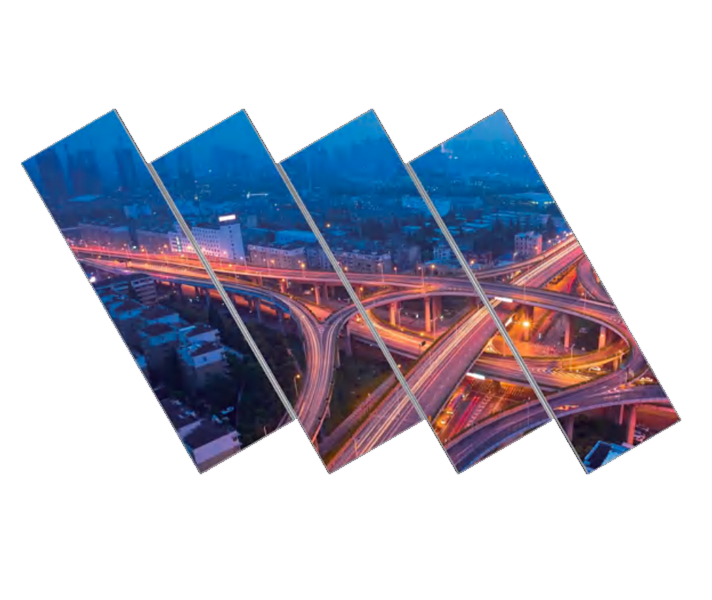

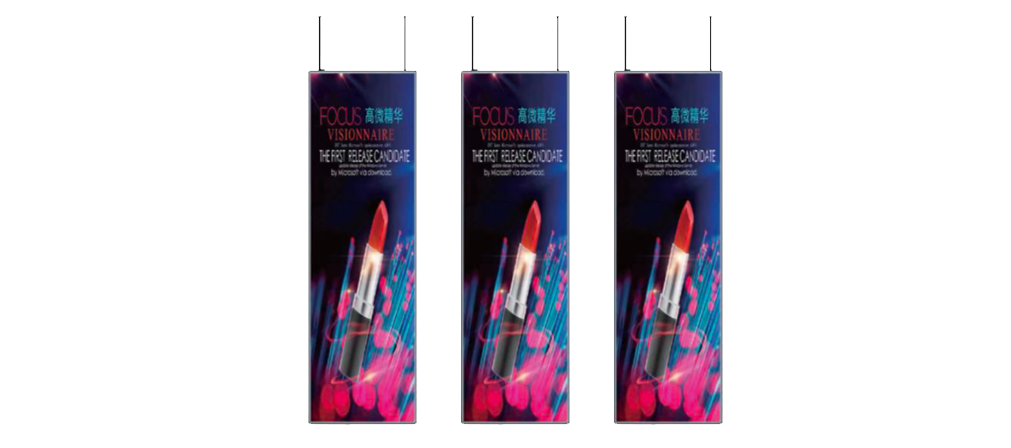

Stacking, bracket mounting; vertical and horizontal hanging; wall mounting, DIY splicing, etc. Support double sided posters.
| Model No. | P1.8 | P2.5 | P3.1 |
|---|---|---|---|
| Pixel Pitch | 1.87mm | 2.5mm | 3.125mm |
| LED | SMD | SMD | SMD |
| Module Resolution（dots/㎡） | 320 * 1080 | 240 * 810 | 192 * 648 |
| Pixel Density | 289,050 dots/㎡ | 160,000 dots/㎡ | 102,400 dots/㎡ |
| Cabinet Resolution（dots/㎡） | / | / | / |
| Support hanging or not | YES | YES | YES |
| Best Viewing Angle | H:160° V:160° | H:160° V:160° | H:160° V:160° |
| Max Power Consumption | ≤520w/pcs | ≤600w/pcs | ≤600/pcs |
| Average Power Consumption | ≤155w/pcs | ≤200w/pcs | ≤200w/pcs |
| Grey Scale | 14bits | 14bits | 14bits |
| Cabinet Weight | / | / | / |
| Refresh Rate | ≥3840Hz | ≥3840Hz | ≥3840Hz |
| Brightness（cd/㎡） | 0-800 nits | 0-800 nits | 0-800 nits |
| Protection Level | IP30 | IP30 | IP30 |
