TI Series

Ultra-light and portable cabinet.

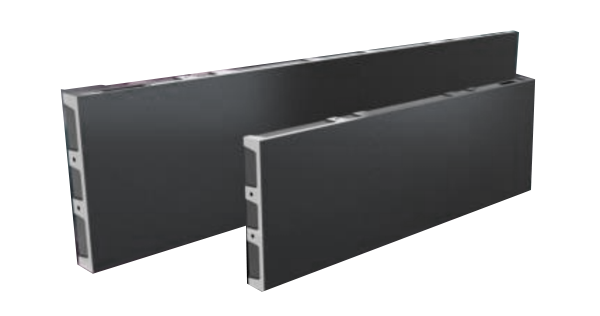

Cabinet structure flexible application.
Multiple size.

Available: 1000*250mm/750*250mm/500*500mm/500*250mm/250*250mm.

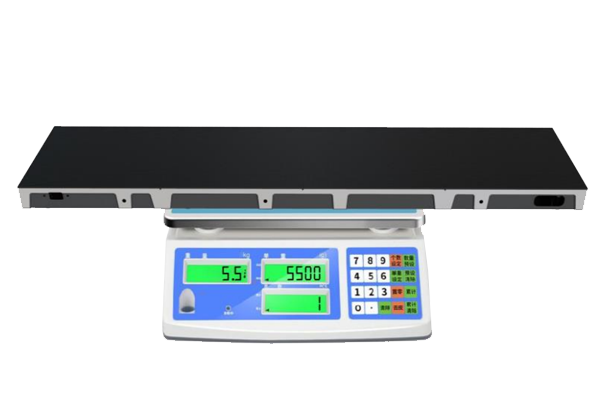

5.5kg cabinet weight & 46.5mm depth, convenient for transportation and installation,lower cost & safer load bearing.

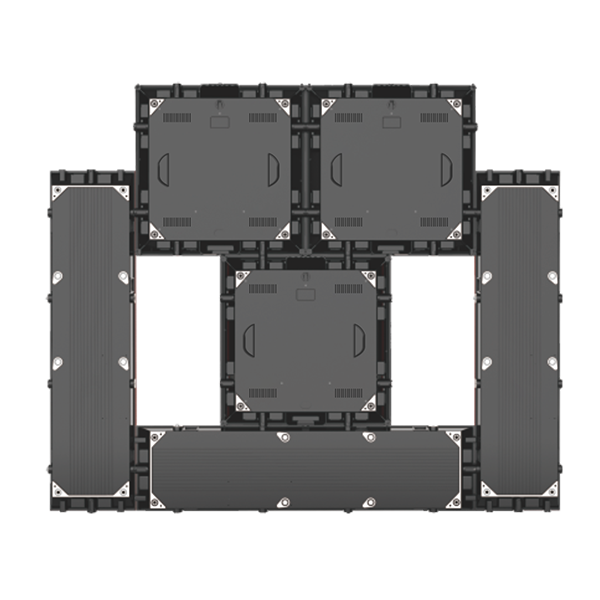

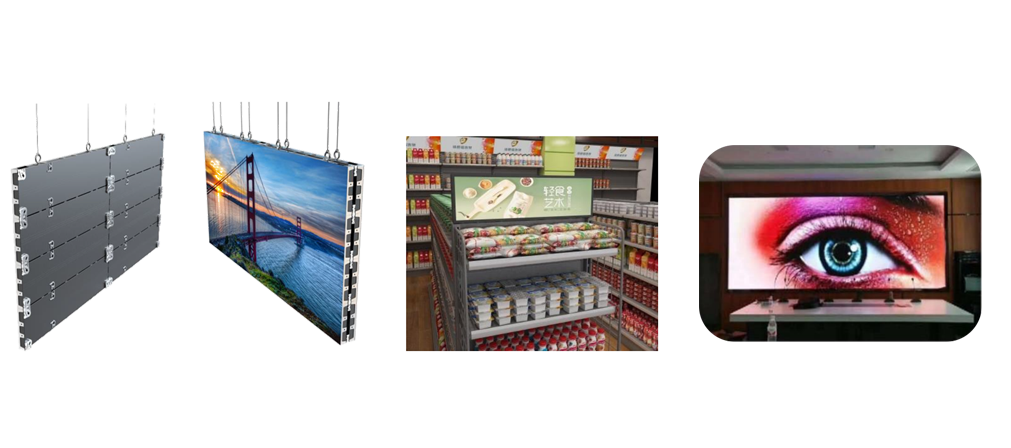

: Thanks to the excellent cabinet structure design,the installation method is flexible and changeable,and the screen has a wide range of applications.

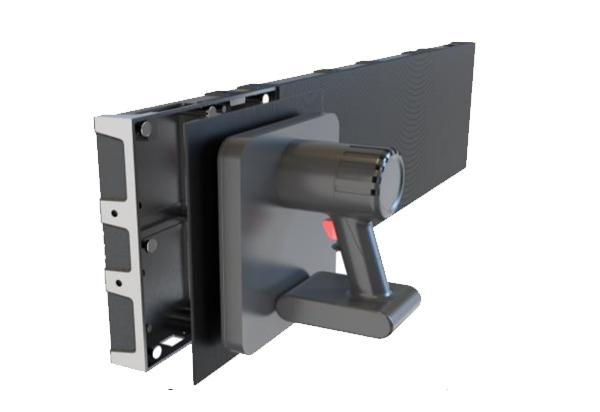

Fast magnetic front maintenance design, easy and fast installation & maintenance.

High refresh(≥3840hz), no flicker when taking pictures.

Customized resolution:1080p,2K,4K,8K,etc.

Model No.	P1.9	P2.6	P2.9	P3.9
Pixel Pitch	1.953mm	2.604mm	2.976mm	3.906mm
LED	SMD1515	SMD1515	SMD2020	SMD2020
Module Resolution（dots/㎡）	128 * 128	96 * 96	84 * 84	64 * 64
Pixel Density(dots/m²)	262,144dots/㎡	147,456 dots/㎡	112,896 dots/㎡	65,536 dots/㎡
Cabinet Resolution	512 * 128	384 * 96	336 * 84	256 * 64
Support hanging or not	YES	YES	YES	YES
Best Viewing Angle	H:160° V:160°	H:160° V:160°	H:160° V:160°	H:160° V:160°
Max Power Consumption	≤600w/㎡	≤550w/㎡	≤400w/㎡	≤430w/㎡
Average Power Consumption	≤180w/㎡	≤160w/㎡	≤120w/㎡	≤125w/㎡
Grey Scale	14-16bit	14-16bit	14-16bit	14-16bit
Driving Method	1/32 scan	1/32 scan	1/28 scan	1/16 scan
Refresh Rate	≥3840Hz	≥3840Hz	≥3840Hz	≥3840Hz
Brightness（cd/㎡）	≥800 nits	≥800 nits	≥800 nits	≥800 nits
Protection Level	IP20	IP20	IP20	IP20
