TRE SERIES
High brightness 6000-10000nits; IP65 waterproof for led module; Light weight, only 32 kg/panel
Weight
Thickness

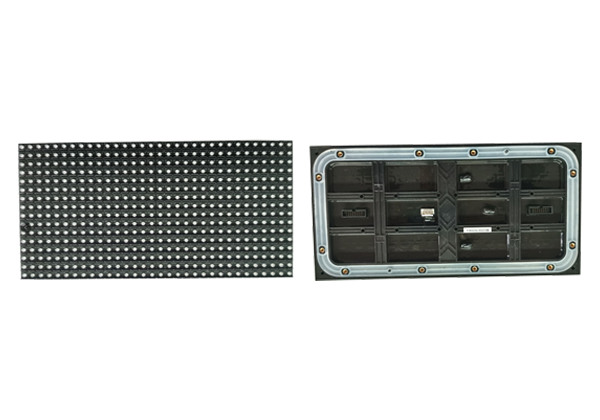

IP65 waterproof for led module
Ultra-light,lighter 40% than common aluminum cabinet.
More slim than aluminum in the design, thiner around 30%. Easy moving, fast installation.
The best price for P10mm DIP outdoor led screen.
Seamless splicing though CNC Machining
| Model No. | P5 | P6.6 | P8 |
|---|---|---|---|
| Pixel Pitch | 5mm | 6.67mm | 8mm |
| LED | SMD2727 | DIP576/SMD2727 | DIP576/SMD3535 |
| Module Resolution（dots/㎡） | 64 * 64 | 48 * 48 | 40 * 40 |
| Pixel Density | 40,000 dots/㎡ | 22,477 dots/㎡ | 15,625 dots/㎡ |
| Cabinet Resolution（dots/㎡） | 192 *192 | 144 * 144 | 120 * 120 |
| Support hanging or not | No | No | No |
| Best Viewing Angle | H:160° V:160° | H:160° V:160° | H:160° V:160° |
| Max Power Consumption | ≤580w/sqm | ≤580w/sqm | ≤540w/sqm |
| Average Power Consumption | ≤254w/sqm | ≤254w/sqm | ≤180w/sqm |
| Grey Scale | 16bits | 16bits | 16bits |
| Cabinet Weight | 32kg | 32kg | 32kg |
| Refresh Rate | ≥3840Hz | ≥3840Hz | ≥3840Hz |
| Brightness（cd/㎡） | ≥6000 nits | 6000-10,000 nits | 6000-10,000 nits |
| Protection Level | IP65 | IP65 | IP65 |
